Overview

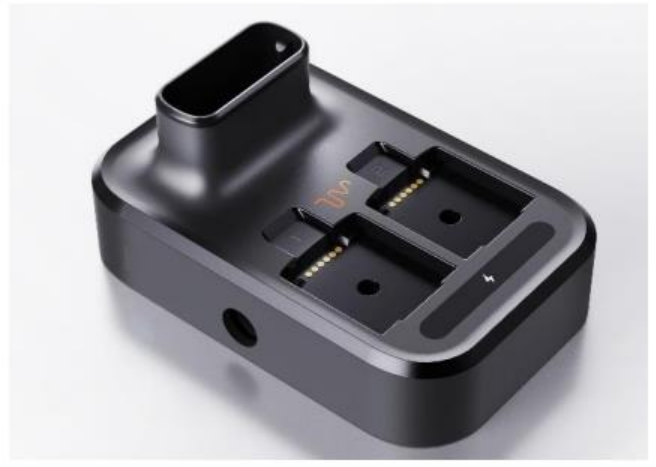

- The charging station has two bays capable of charging two batteries simultaneously as shown
in the picture below.
- Each battery is 450 mAh and comes in fully charged, but to reach the optimal performance,
they must be fully discharged and charged again.
The rated charging time for one battery is 2 hours at 0 – 45 Celcius.
Unpacking
- When unpacking the charging station it is important to check the serial number that is placed
under the charger.
Mounting
- The pins on the battery and charger must face each other. The battery must be inserted first
on the side with no pins to be contacted with the charger.
Power
- DC Adapter, provided by TIM
The rated output power is 5V / 3A, and the rated input power is 100/240 VAC with 0.8 A at
maximum.
Charging & LED Status

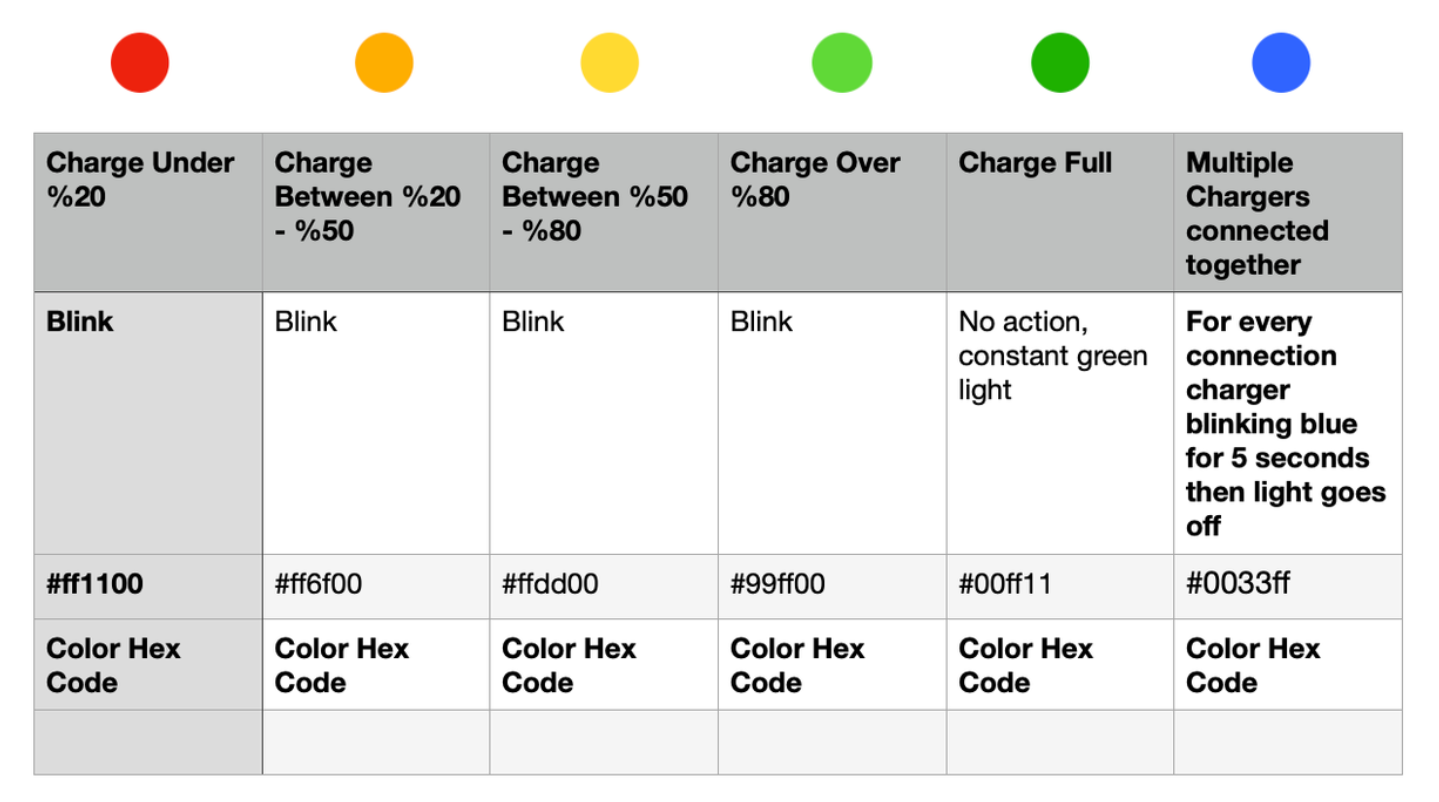

- The charger shows the percentage of the connected battery with LED color codes as shown
in the below table.
Dimensions
- The dimensions are approximately 135 / 89 / 23,5 mm as shown in the below drawings.
Safety
- Follow the battery usage, storage, and charging guidelines in the user guide. Incorrect
battery use may cause fire, explosion, or another hazard.
- Do not use an adapter other than the original one. Using an incompatible adapter may cause
hazards as stated below.
- Do not open, twist, crush, or tamper with the battery or charger.
- Do not let conductive objects contact with the pins on the charger or the battery.
- If there is a chemical discharge on the battery, do not let it contact with your skin. If so, seek
medical attention.
